Claude Code + Figma: Connect It, Then Draw the Project

A real Claude Code session, start to finish: connect Figma through its plugin, check which account and plan you're on, have Claude Code read a project and write its agentic diagram as Mermaid, draw that as a FigJam board, then compare the board against the code. The session hit real friction along the way: a revoked login, a second Figma team with only a View seat, a board that kept every box but flattened every label, and a duplicate prompt.

The first ask was the smallest possible one: use Figma's whoami tool, tell me which account I'm on. The answer was a 401 — Claude Code's own login had been revoked, not Figma's. Nothing was connected yet, not even Claude. The better question this video is built around isn't "can Claude Code read my Figma" — it's whether it can draw your project: write the diagram as text in the repo, put it on a FigJam board, then check the board against the code. Connect first. Then draw. Then check.

Four terms: MCP, the standard plug that lets an agent call outside tools; the Figma plugin, Figma's package for Claude Code — its MCP server settings plus a set of skills; FigJam, Figma's whiteboard; Mermaid, a diagram written as plain text.

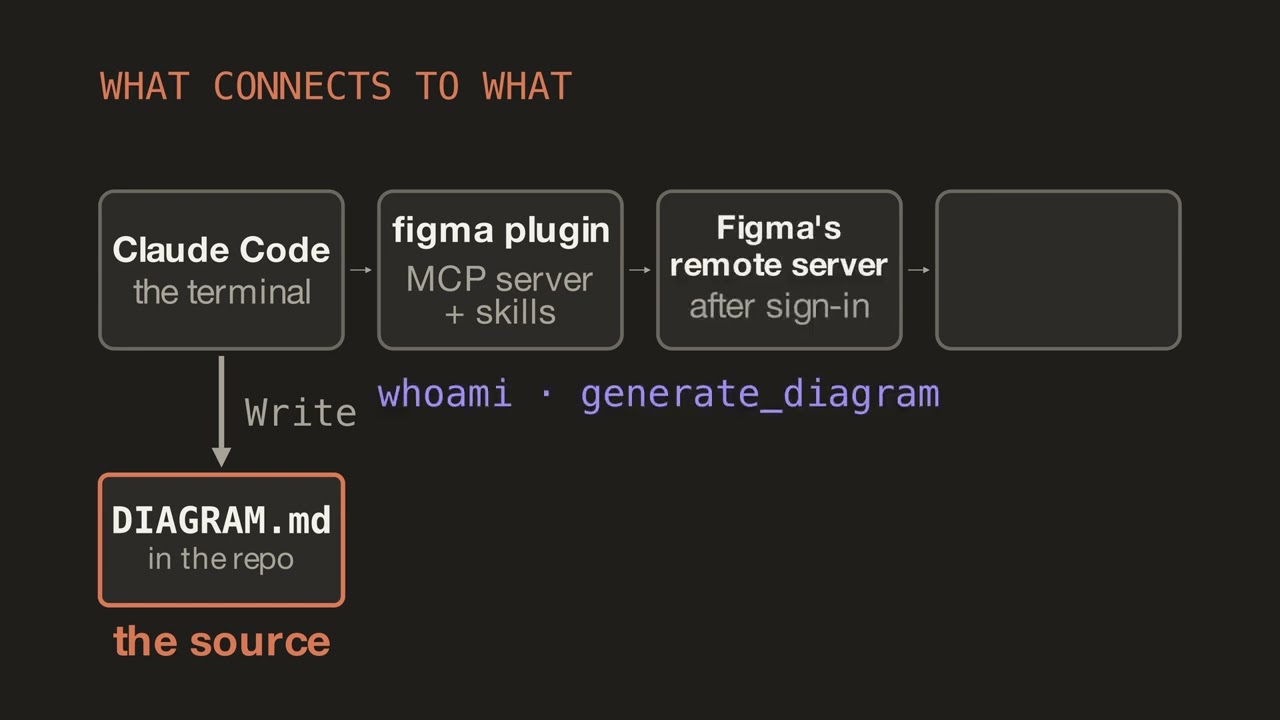

Fixing the actual break came first: /login, then /plugin to confirm Figma's plugin was current. A second ask still failed — Claude Code was logged in, but Figma wasn't — so Claude started Figma's own sign-in and printed a one-time link. That click had to happen by hand; Claude can't make it. A third try returned whoami: two plans, a Student-tier Full-seat Admin team, and a second Starter-tier View-seat team — real evidence of which account was connected.

With Figma connected, the actual project came first, in text: a prompt naming the pipeline steps, the human approval gates, and the instruction not to touch Figma yet produced a 106-line DIAGRAM.md with an executive summary above the Mermaid. Only then did the same Mermaid get drawn into a new FigJam board, with the link written back into DIAGRAM.md.

The real test was comparing the board against the code, in both directions, without fixing anything. Four things on the board weren't in the code — including one gate that came from house rules, not the collector itself, and a reference document mistakenly drawn as a runtime input. Fourteen things in the code weren't on the board — two-phase logic, a from-raw replay mode, an allowed-hosts list, per-company ignore words, exit codes, and more. The board kept every section, gate, and connector; it dropped the detail. A duplicate prompt sent by accident got caught, too — Claude recognized the repeat and asked if a follow-up was intended instead of re-running or inventing a second answer.

Your Turn: Paste into Claude Code, in a repo of your own: "Read this repo and write its structure as Mermaid in a new file, DIAGRAM.md. Then use the Figma MCP server to draw it as a FigJam board, and add the link to the file. Then compare the board with the code: list what's on the board but not in the code, and what's in the code but not on the board. Don't fix anything." Keep DIAGRAM.md in the repo as the source of truth — the board is a view of it.

Sources: Figma, "Claude Code and Figma: Set up the MCP server"; Figma MCP server tools and prompts; rate limits and access (help.figma.com, developers.figma.com). Every factual claim checked against these sources and the real session transcript before rendering. An independent series, not affiliated with or endorsed by Figma or Anthropic.
