Godot Shaders and Materials: Test What You Can Explain | Assignment 5 Walkthorugh

Connect Godot shader code to game state, then compare predictions with actual rendered pixels.

Inspect a signal shader, material uniforms, color versus data textures, controlled parameter sweeps and an actual StandardMaterial-to-ShaderMaterial conversion. The example includes 53 wiring checks, deliberate failing mutations and driver tests at 30, 60 and 144 frames per second. A measured color discrepancy remains documented. These are AI-authored instructor scaffolds; the student assignment requires student-written shader code and explanations.

CSYE 7270, Assignment 5: Professor Bear’s worked example.

Your turn Read my shader specification without editing my shader. Audit its declared uniforms, driver ownership, material values and texture hints. Propose tests through real events and a native controlled-capture plan. Separate machine evidence, rendered pixels and the human checks I still need to perform.

Chapters 0:00 Introduction 0:40 Specify The Meaning 2:02 Drive And Observe 3:24 Treat Textures As Information 4:50 Read The Language And Hand Off 6:19 Closing

Sources and credits CSYE 7270 assignment brief; Walker Claude source, design records, test receipts and engine captures. Teaching direction: Nik Bear Brown. AI-assisted implementation, analysis and film production. Liam, in for Bear: synthetic Kokoro narration. Scripted engine input is labeled; no human playtest or learner approval is claimed.

Professor Bear Does His Assignments https://www.youtube.com/playlist?list=PLM51lFDKue_A

What this video covers

• 0:00 — Introduction
• 0:40 — Specify The Meaning
• 2:02 — Drive And Observe
• 3:24 — Treat Textures As Information
• 4:50 — Read The Language And Hand Off
• 6:19 — Closing

Transcript

A lightly formatted transcript of the video, with timestamps so you can jump to any section on YouTube.

Introduction

[0:00] CSYE7270 assignment walkthroughs, shaders you can explain. Connect game state to color, inspect materials, and test the explanation. Hello, this is Liam in for Bear for CSYE7270. A test can establish the declared interface and state, but rendered pixels need their own evidence. We will connect Walker Claude signal action to a color expression, then inspect textures and the code Godot generates. Prerequisite terms: shader, a program that computes rendering outputs, uniform, an input supplied by the game or material, material, a shader paired with input values, texture, a grid of sampled numbers.

Specify The Meaning

[0:40] Start with a state the player needs to see, specify its observable rules, write the color expression, then choose checks that can establish those rules. The signal pad communicates progress through one committed action. The student brief requires students to write the shaders and language answers themselves. Claude helps with context, drivers, tests, and audits. These files are an AI-authored instructor scaffold under Bear's direction, so they are not presented as Bear's hand-written submission. The root context file imports the repository rules and change brief. File references keep project facts traceable. When an assignment changes, replace the imported contract deliberately instead of leaving contradictory instructions in the context. A spatial shader supplies rendering behavior for three-dimensional geometry. This fragment program computes the pad's color from coordinates and uniforms. It has no persistent gameplay memory. The CPU-side game must provide activation. UV selects a stripe. The base alternates between two strengths of the quiet color. Mix blends that base toward the active color as activation rises. Unshaded output removes scene lighting from this controlled expression. Before capture, we predicted two named interior pixels at zero, half, one, and two. At full activation, both stripes should converge. Setting two deliberately tests extrapolation beyond the inspector range.

Drive And Observe

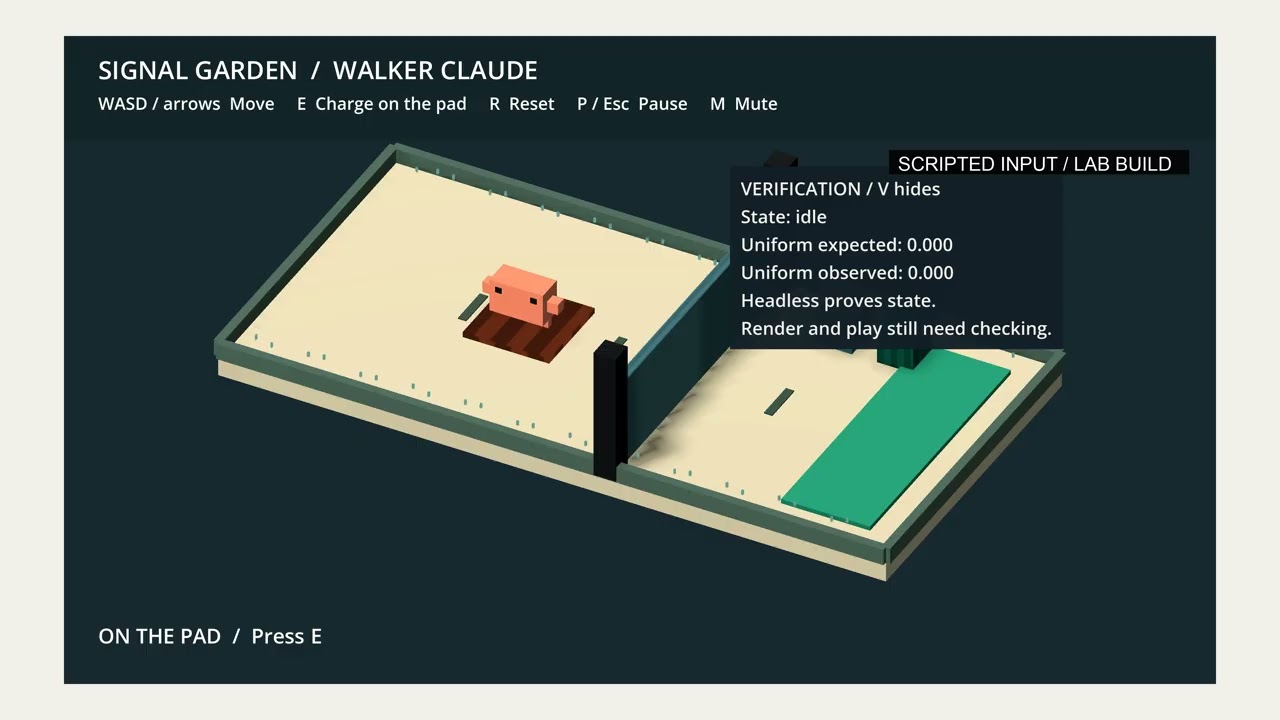

[2:02] The existing game advances charge in its physics loop, then writes charge divided by 6/10. Presentation reads state. It does not redefine collision, movement, input, or when the gate opens. Here is the real room during a scripted physical input run. The observer compares expected and actual activation. The pad and gate are rendered by Godot, while the observer remains a diagnostic reader of the existing game. These are crops from actual native engine captures at zero, half, one, and two. At one, the stripes disappear into a single color. At two, the shader extrapolates and the display clips channels. The inspector hint did not constrain the value sent from code. The simple full activation prediction is red 31, green 184, blue 133. The sampled image gives 28, 184, 133. We retain that difference. Its render level cause has not yet been isolated. The new test uses physical key events at 30, 60, and 144 render frames per second. The action lasts 6/10 of game time at normal and half time scale. Retriggers are ignored, pause freezes it, reset prevents a late gate. Deleting a semicolon, renaming activation, and removing the color hint each make the relevant isolated check fail. A set and get round trip alone can accept an undeclared name. The declared uniform list is a separate requirement.

Treat Textures As Information

[3:24] A material pairs a shader with values including textures. The shader decides whether sampled numbers represent color, roughness, or something else. Two resources can therefore share one program while producing different surfaces. The color sampler has source color. The roughness sampler does not. Their roles are different even though both files are grids of numbers. Nearest filtering is explicit in this small teaching texture. The three band fixture contains 64, 128, and 192. Our compatibility renderer returns those same band values with both samplers. The different forward plus prediction must not be passed off as an observation from this machine. The baseline has two distinct materials sharing one shader. A temporary edit

To the shared shader changes both spheres. Restoring it, then changing only the left material's tint changes only the left sphere. The saved game resources are untouched by this experiment. Our roughness gains 0. 8 and 1, the highlight changes under fixed lighting. The shader clamps the roughness result above a small floor. A color picker has no single numeric minimum or maximum. It's black, white, and red samples are documented separately. These captures change UV scale from 1/4 to 1 to 4. Repetition increases while the texture stays the same. The audit checks both saved materials, exact paths, values, and import settings. 53 assertions pass after correcting a mistaken type expectation.

Read The Language And Hand Off

[4:50] In an isolated scratch scene, make the standard material unique, then convert it through the inspector. Keep the generated code separate from the game and annotate what its lines do. This conversion was performed in the actual Godot editor. Godot's generated albedo sampler carries source color. It's normal sampler carries a roughness normal hint and no color hint. Our custom shader makes the same color versus data distinction using roughness rather than a normal map. The diagnostic fixture reads UV to sample its texture. An optional screen ruler reads fragment coordinates and viewport size. These are read-only inputs in this fragment stage. Albedo is an output. The generated vertex stage can instead modify UV before interpolation. The

Scratch conversion uses an analytic OpenGL normal map. A sourced Polyhaven OpenGL and DirectX pair calibrates the convention check. The preferred convention changes with the known variant. No universal zero curl promise is made. The first material test expected a vector type where the engine reports a color. The first driver trace tried to convert an unset override to a float. Both failed runs are retained and the tests were repaired. Human visual approval and the color discrepancy remain open. Keep the specification, context, source, audit, language, answers, and film together. Students must post and identify the matching version and perform their own human checks. This instructor build is local. No canvas submission or student authorship is implied.

Closing

[6:20] Let's recap with Claude. Specify a visible meaning and predict the color expression. Drive real state and test events, timing, and mutations. Treat textures as data with explicit material settings. Read generated code and state what evidence cannot prove. Read my shader specification without editing my shader. Audit its declared uniforms, driver ownership, material values, and texture hints. Propose tests through real events and a native control capture plan. Separate machine evidence, rendered pixels, and the human checks I still need to perform. Shaders you can explain at Nick Berry Brown.
