Godot Particle Effects That Communicate Game State | Assignment 6

Design Godot particle effects that make a game event readable, then inspect the resources and real output.

Compare a burst and an ambient effect through saved resources, fixed seeds, alpha fades, scale curves and native engine captures. The worked example uses 24 checks and a bounded CPU measurement. It separates repeatable technical evidence from a human judgment about whether the effect feels right.

CSYE 7270, Assignment 6: Professor Bear’s worked example.

Your turn Read my particle brief and current rendered frame strip. Compare onset, motion and dissipation to the intent. Propose one setting change, stating its old value, new value and predicted visible result. Preserve the gameplay event rules. Add a configuration readback check and a recapture command.

Chapters 0:00 Introduction 0:34 Design The Effect 1:38 Build Inspectable Resources 3:10 Close The Visual Loop 4:31 Direct, Verify, Explain 5:29 Closing

Sources and credits CSYE 7270 assignment brief; Walker Claude source, design records, test receipts and engine captures. Teaching direction: Nik Bear Brown. AI-assisted implementation, analysis and film production. Liam, in for Bear: synthetic Kokoro narration. Scripted engine input is labeled; no human playtest or learner approval is claimed.

Professor Bear Does His Assignments https://www.youtube.com/playlist?list=PLM51lFDKue_A

What this video covers

• 0:00 — Introduction
• 0:34 — Design The Effect
• 1:38 — Build Inspectable Resources
• 3:10 — Close The Visual Loop
• 4:31 — Direct, Verify, Explain
• 5:29 — Closing

Transcript

A lightly formatted transcript of the video, with timestamps so you can jump to any section on YouTube.

Introduction

[0:00] CSYE7270 assignment walkthroughs, particles that read, design and effect, inspect real frames, and tune from evidence. Hello, this is Liam in for Bear for CSYE7270. Particle creation means designing what reads on screen, not just making a node emit. We use Walker Cloud's burst and ambient modes with real before and after frames. Prerequisite terms: emission, where particles start; process, how particles move and change; draw, how particles appear; lifetime, how long one particle survives.

Design The Effect

[0:34] Start with the visual job, then settings, a real render, and a revision. The canvas source emphasizes creation alongside verification and pricing. A counter saying the effect fired cannot establish whether it reads. Emission chooses the starting distribution. Process changes motion and appearance over life. Draw determines the visible surface. CPU and GPU particle nodes place different work on different processors. Both still need a working draw setup. A lifetime is not an intent. Say what happens at onset, outward motion, and dissipation. Our event burst lasts 7/10 of a second. The revision changes scale and alpha while preserving that event lifetime. Judge value contrast and character scale over the actual room. A gray editor backdrop can hide a problem. Variation avoids stamped repeats. Layered emitters can form one effect whose whole group must be tested and priced. The committed brief predicts that constant dots will read like a spray. It asks for scale curve and alpha change while preserving speed and lifetime. Keep that prediction beside the old and new frames.

Build Inspectable Resources

[1:38] Use one bounded effect at a time. Write the resource, read its loaded configuration back, and render it. Our tuning is baked into saved scenes, so the curve, gradient, and draw material can be inspected in the editor and diff. An alpha curve needs transparency, and particle color needs vertex color as albedo. Without those draw settings, the process can be correct while the visible result is wrong. These are real properties in the saved burst material. The upper row is the baseline and the lower row is tuned. These are real rendered fixture frames at matched ages and seed. The late baseline dots remain solid. The tuned burst shrinks and fades before its lifetime ends. Now watch the real pad action. The charge opens the gate and emits the burst.

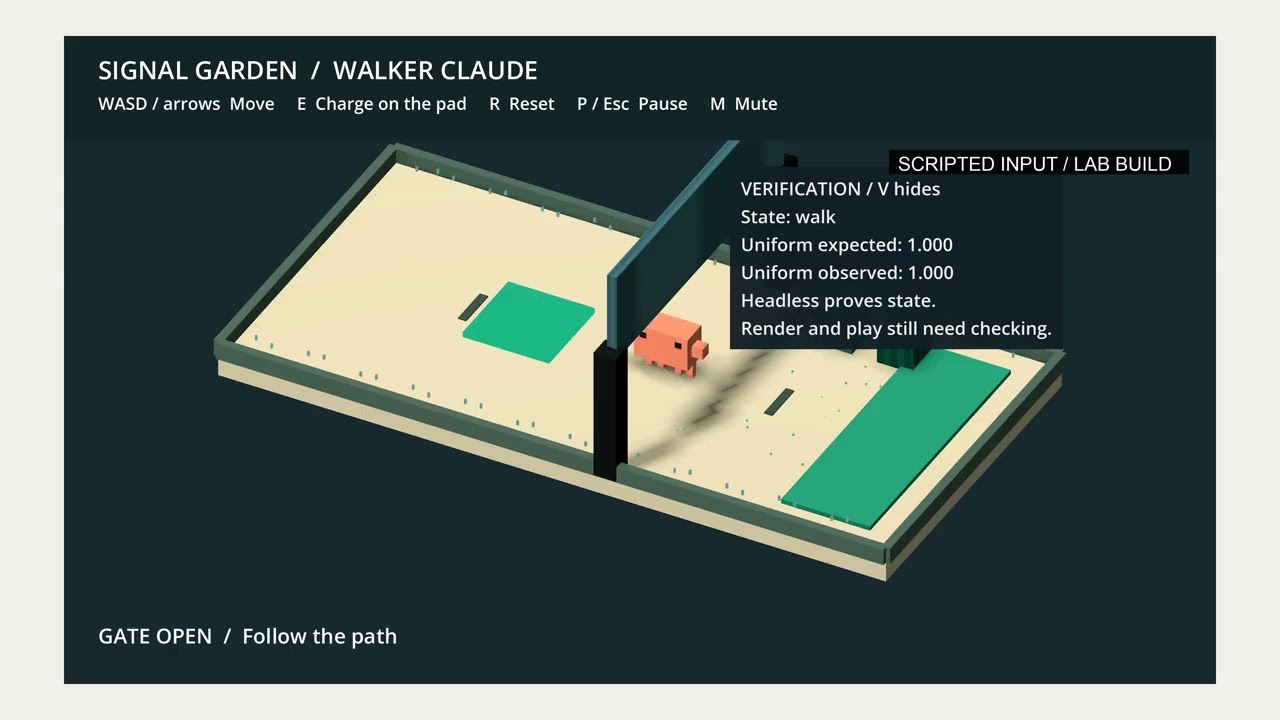

The effects observe that event. They do not decide when the gate opens. These are scripted physical inputs at normal action speed. The second effect uses a box distribution and ongoing emission, unlike the explosive burst. Preprocessing gives it an established distribution at activation. Its condition still stops at a completion, reset, pause, or hidden presentation. The actual open gate allows ambient motes. As the character reaches the destination, that condition ends. This recording checks the visible sequence. It is not a human judgment about how much ambience is appropriate. Godot three and four property names differ. Do not accept a scene loading as proof that a setting was applied. Read actual properties back. GPU bounds, billboard quads, and flipbooks need their own checks. Our CPU spheres do not claim those features.

Close The Visual Loop

[3:10] A headless test cannot show the effect. Render a representative fixture with a real renderer, give selected frames to the agent, compare them to intent, then let the human judge the running game. Each instrument answers a different question. Give both variants the same random seed. Keep the camera, background, event, and sample ages fixed. Our capture harness changes particle seeds for the fixture, but sends normal inputs and never writes movement, charge, or completion state. Keep three things: prediction, before and after frames, and verdict. The agent's frame reading is a fallible claim. Our AI inspection sees taper and fade. Bear's dated verdict about in-game readability remains pending. Headless CPU cost and real GPU render time are different measurements. Vsync can hide a frame rate difference. A zero GPU field is not proof that rendering is free. Our recorder reports zero, so no GPU price is claimed. A one-shot effect may ignore another trigger unless you choose a restart, overlap, or ignore policy. This game explicitly restarts the burst, then emits. Test two events inside one lifetime and preserve gameplay's own event boundaries. This excerpt shows the same real signal event again. The burst follows gate opening. It does not open the gate itself. The restart policy belongs in the source and a separate retrigger check.

Direct, Verify, Explain

[4:31] Give the agent the brief and current frames. Ask for one proposed lever and its visible prediction. After the change, recapture and compare. Keep structural expectations in sync with intentional tuning while preserving the game's behavior checks. A refused command followed by expected output is not a test. Read the session's result event in real logs. A wrapper bounds runtime and treats script and resource errors as failures even if the process exits zero. The canvas review proposes a 60-point implementation subtotal focused on craft. Its categories include intent, two effects, tuning, verification, price, and the film. The numbers are labeled proposed in that source. This lecture preserves that distinction. The saved scenes, read back checks, and native strips exist. Human artistic judgment and defensible GPU timing remain separate. This instructor example was I authored under Bear's direction. It does not invent a student's play experience or an approval.

Closing

[5:29] Let's recap with Claude, design timing, contrast, and scale before settings. Save and read back the process and draw resources. Compare controlled native frames before and after tuning. Separate configuration, render cost, and human judgment. Read my particle brief and current rendered frame strip. Compare onset, motion, and dissipation to the intent. Propose one setting change stating its old value, new value, and predicted visible result. Preserve the gameplay event rules. Add a configuration read back check and a recapture command. Particles that read at Nick Bear Brown.
