Walker CSG: Twelve Solids and a Wheel That Counts Twice
This walkthrough moves through twelve CSG specimens from Union to Road in a native 4K Godot capture. It checks orbit and zoom behavior, including a wheel notch that moves twice the declared constant. Boolean correctness is not claimed because the meshes were not measured.
Walker CSG: Twelve Solids and a Wheel That Counts Twice
This walkthrough moves through twelve CSG specimens from Union to Road in a native 4K Godot capture. It checks orbit and zoom behavior, including a wheel notch that moves twice the declared constant. Boolean correctness is not claimed because the meshes were not measured.
Chapters: 0:00 Reconstructed Walker prompt types in 0:36 No input 1:03 Left-drag yaw 1:30 GUI Next clicks x4: Polygon, Polygon Smooth, Slope, Staircase 2:02 GUI Next: Road (path mode) 2:30 Measured zoom per notch lands as spoken 3:09 Suggested one-test experiment types in
https://github.com/nikbearbrown/walker-3d-csg
Liam in for Nik Bear Brown · AI-assisted; scripted-input Godot captures, no human playtest claimed.
What this video covers
- 0:00 — Reconstructed Walker prompt types in
- 0:36 — No input
- 1:03 — Left-drag yaw
- 1:30 — GUI Next clicks x4: Polygon, Polygon Smooth, Slope, Staircase
- 2:02 — GUI Next: Road (path mode)
- 2:30 — Measured zoom per notch lands as spoken
- 3:09 — Suggested one-test experiment types in
Transcript
A lightly formatted transcript of the video, with timestamps so you can jump to any section on YouTube.
Reconstructed Walker prompt types in
[0:00] Hi, this is Liam in for Bear. The prompt on screen is a reconstruction, not a saved chat. Use Walker to turn a design document about a gallery of constructive solid geometry into a Godot project. Everything after it is real engine output, rendered at 4K and driven by scripted keyboard and mouse input, not a human play test. Here's what was actually built. Godot's official CSG demo red idle for Walker. 12 solids in a row, each made by adding, cutting, or overlapping simple shapes and a camera that steps between them. No goal, no score, no end. A gallery, not a game. And one control does twice what its code says.
No input
[0:36] No input yet. Specimen one union, a box and a sphere merged into one solid. The label names it and previous is grayed out because nothing comes before it. This is Godot's forward plus renderer drawing natively at 4K. Right arrow, the camera slides to subtraction. The same box and sphere with the sphere carved out of the box. Right again, intersection, only the volume they share. Same shapes, same viewpoint, one property changed.

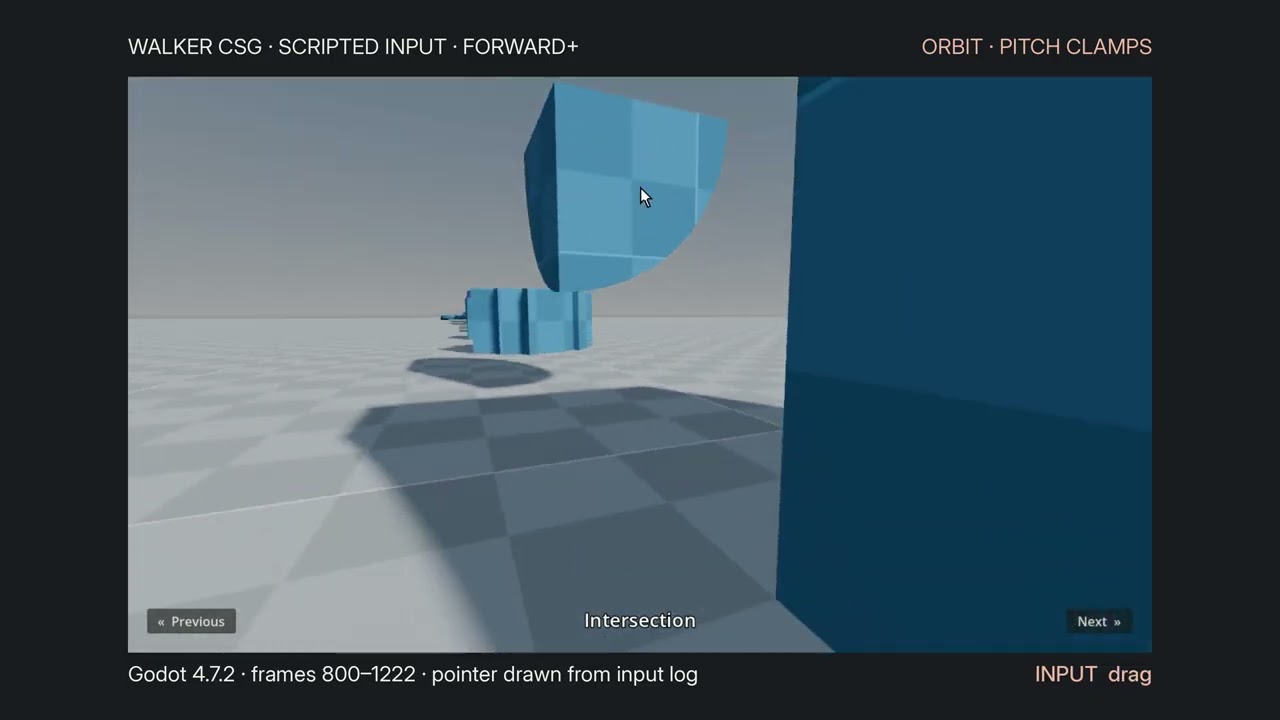

Left-drag yaw
[1:03] Now a drag. Sideways motion turns the view around the specimen. Drag down and the pitch stops at straight down. Drag up and it stops at the horizon. Then the driver drags back to the starting view. The wheel, each notch reaches Godot as a press and then a release and the script counts both. So one notch moves a quarter unit twice its constant. 10 notches reach the closest limit, one and a half. 20 take it out to six.
GUI Next clicks x4: Polygon, Polygon Smooth, Slope, Staircase
[1:30] The next button clicked four times. Four polygon extrusions, a flat outline pushed into depth, the same with smooth shading, a slope, and a staircase. Each one is a 2D shape given thickness. Staircase spin, the outline is turned around an axis instead of pushed. Then curves, two boxes, one with a cylinder cut away, one keeping only the cylinders overlap. Pillar stacks a cylinder, spheres, and a torus with cuts. Beveled cube is one box with 12 thin boxes subtracted along its edges.
GUI Next: Road (path mode)
[2:02] The last specimen road a cross-section swept along a curved path next graze out. One more click and one more right arrow change nothing. Left arrow 11 times fast. The camera slides back along the whole road to Union and previous graze out again. That's every specimen and every control. A second take same build no input on the compatibility renderer. The script splits the sun into two lights and the picture shifts. A bluer floor brighter blues.
Measured zoom per notch lands as spoken
[2:30] The wheel in numbers the script zoom constant is .125. One notch sent is the press and release pair move the camera .25. The project's own test sends presses only so it saw .125 and passed. That's why it never noticed. 10 notches from the start reach the near limit. The verdict what works on screen all 12 specimens render stepping by keys and buttons both bounds orbit and both pitch limits zoom to both limits in the compatibility light split. What's off a wheel notch zooms twice as far as the constant and the test can't see it. What's unchecked whether each Boolean is geometrically correct. This film shows pictures not measurements and what only a person decides what these films are meant to teach.
Suggested one-test experiment types in
[3:09] Return use walker on walker 3D CSG at a headless test that sends one wheel notch as a press and a release and asserts the distance moves by the zoom constant. Predict whether it fails run it then make the smallest change that passes and rerun every existing check. Write the test first. If it passes on the ship code your test is wrong not the demo. Liam in for bear. Walker CSG 12 solids and a wheel that counts twice at Nick Bear Brown.
